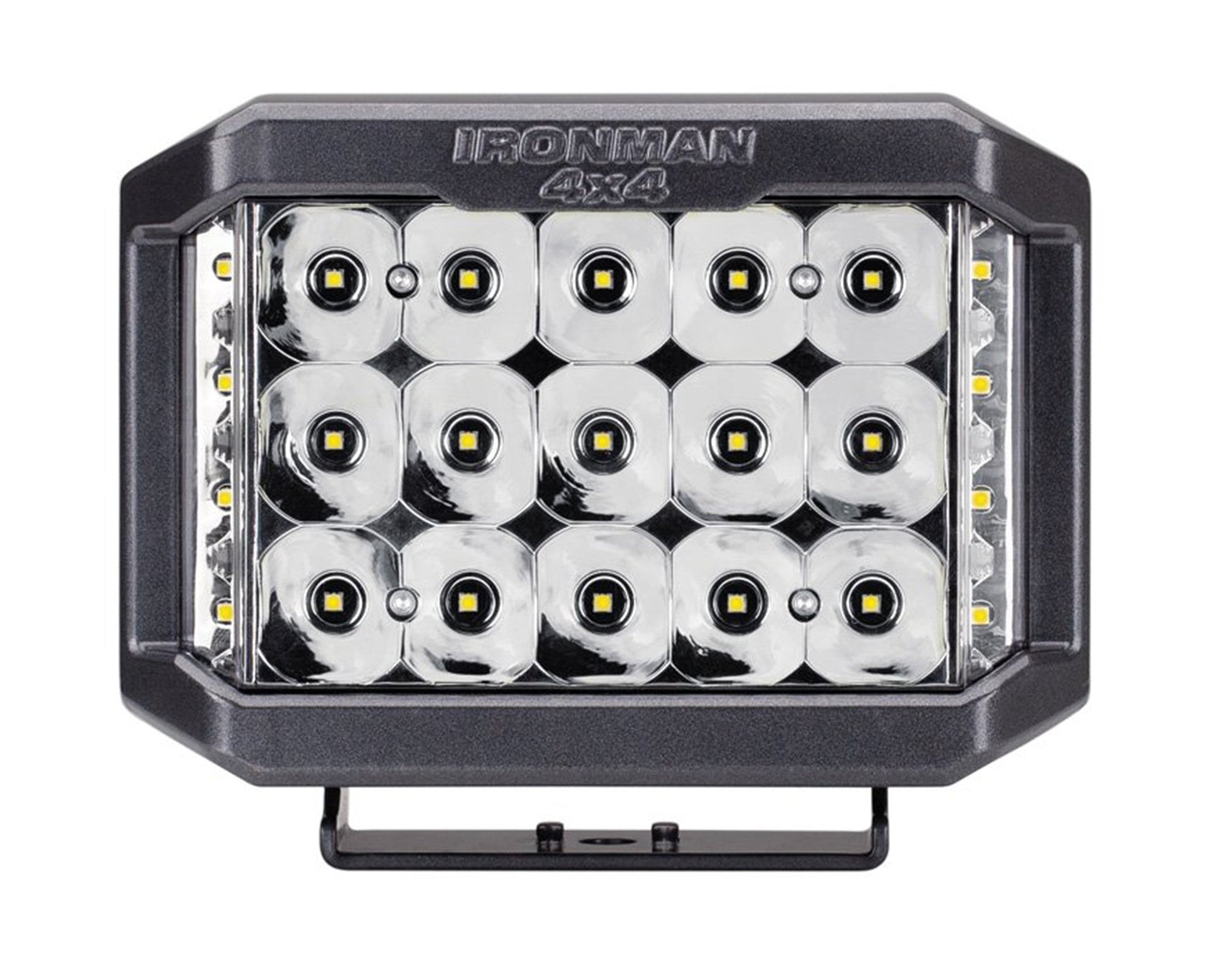

The Eclipse 5×7 driving lights offer a whole different look, and well complement many, if not most vehicles with their squared off appearance. Combining 15 high powered LEDs for forward projection and 8 side-shooters for optimal spread, the Eclipse 5×7 features a cast aluminium heat sink, IP67/69 rating as well as a virtually indestructible polycarbonate lens.

Class Leading OSRAM LEDs
50,000 hour lifespan

6000-KELVIN Colour
optimal light that’s easy on the eyes

Diecast Alloy Housing
withstand extreme conditions

Straight- up Distance, Good Spread

Bringing back the retro style in driving lights with these 5×7 Eclipse LED driving lights.

The perfect rectangle shape combined with a side shooter spread provides straight-up distance with a pleasing amount of spread.

Designed and engineered to produce the closest imitation light to natural daylight (6000K), the 5×7 Eclipse driving light provides a beam reach of over 1.3km with a combined wattage of 99W per light.

Specifications:

Raw Lumens: 7,540

Effective Lumens: 5,654

Lumen Efficiency: 74.99%

LEDS: OSRAM

LED Configuration: 15 x 5W and 8 x 3W

Dimmability: No

IP Rating: IP67/69K

1 LUX Rating: Single: 648m

LUX @ 10M: 4,200

Max Power: 75W

Current Draw: ~6.48 amps @ 12V

Kelvin (Colour): 6,000K

Dimensions (Light): 177mm(l) x 164mm(w) x91mm(d)

Height (including mount): 164mm (6.4”)
