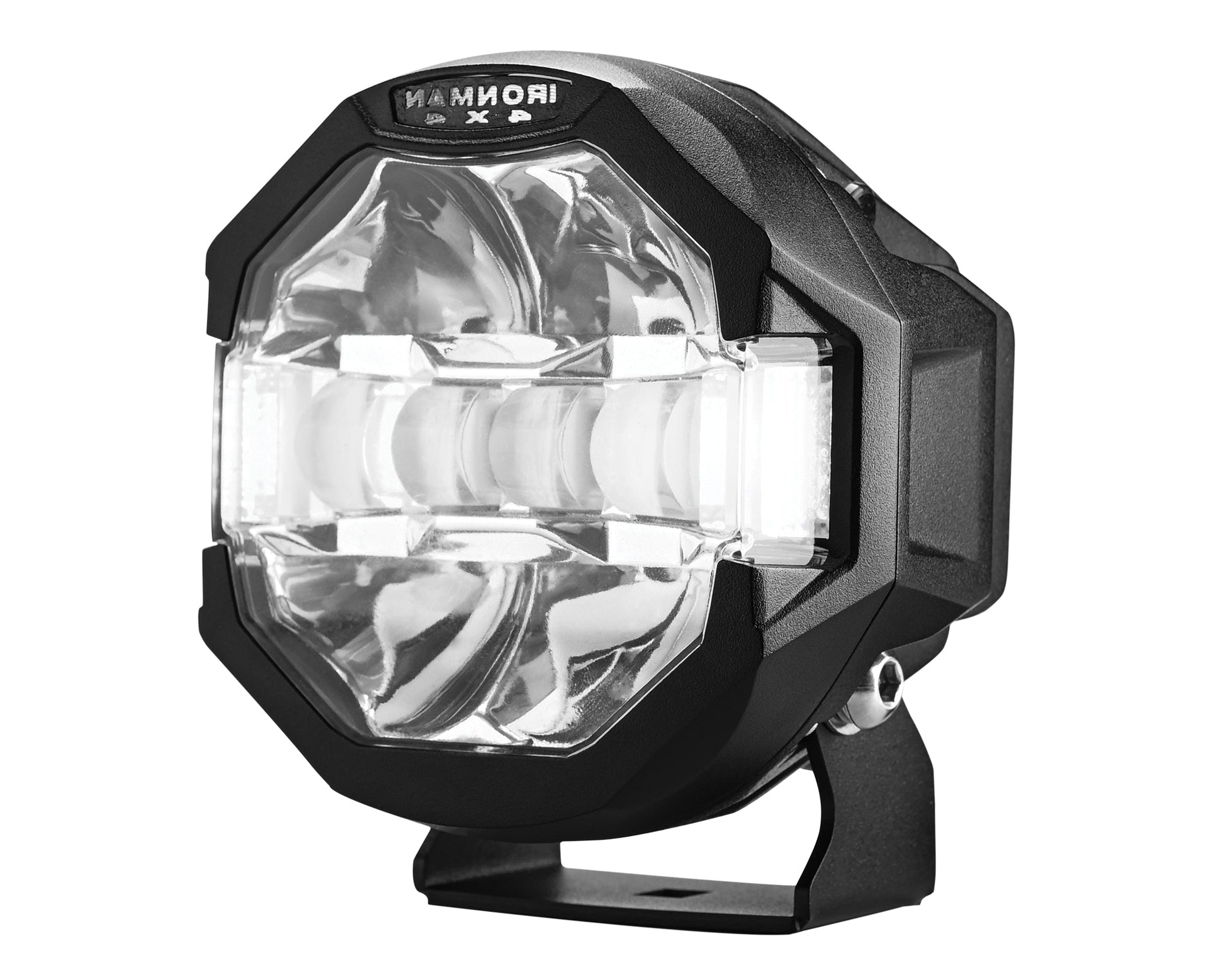

The Ironman 4x4 Scope 5” driving lights combine the best modern illumination technologies, pairing hooded reflectors with TIR optics to create an optimal output in both efficiency and performance. High-power OSRAM LED chips are mounted directly to the cast aluminium housing for improved heat dissipation, creating a sleeker body that can be installed in more places. Two position lights offer a DRL effect, while the illuminated logo completes the modern design. The Scope 5” driving light is available in SPOT or COMBO options.

Dimensions:

Width: 113mm (4.5”)

Depth: 90mm (3.5”)

Height: 114mm (4.5”)

Specifications

Beam Pattern: Spot or Combo

Power: 42W

Voltage: 10-32 Vdc

LED Chip: OSRAM

Lumens: 4,400

Colour Temperature: 5,700K

Operating Temperature: -40°C to +85°C (-40°F to +180°F)

Connector: Deutsch 3 pin

IP Rating: IP68/1P69K

1 LUX: Spot- 317m, Combo- 293m

Warranty: 3 Years

Certifications: R112, R10, CE, RoHS

Quantity Per Box: 1

Spot vs. Combo Beam Patterns - What they’re best used for?

A Spot and Combo version of the hooded reflector is available - the Combo driving light pushes more light out in a greater spread, while the Spot driving light puts all its effort into getting the light as far down the road as possible.

Spot Beam: This beam type is ideal for long-distance vision on remote highways and long straight, outback roads. It starts narrow and widens out at a longer distance.

Combo Beam: this beam type is a mix of a flood and spot beam, useful for a wider field of view at shorter distances on winding bush and alpine roads.

This beam type starts wide at shorter distances and then tapers in.
